A conference table is the most used surface in many offices. Making it height adjustable turns standing into a natural part of meetings—improving focus, shortening sessions, and supporting inclusive access. But raising a large, shared surface introduces engineering challenges: more weight, longer spans, microphones and displays, and tighter safety expectations. Here is how to design a height adjustable conference table that moves quietly, stays stable, and plays nicely with power and AV.

Why lift a conference table at all

Standing meetings reduce slump and keep energy up. A height adjustable desk used as a meeting table:

• Encourages shorter, more focused sessions and clearer whiteboard visibility.

• Accommodates a wider range of users without awkward stools or platforms.

• Supports demos and workshops where people gather around devices or prototypes.

Sizing, layout, and clearances

• Seating count and span: Typical widths are 72 to 120 inches for six to 12 people. Larger tops need more lifting columns and a rigid subframe to control flex.

• Depth: 36 to 48 inches gives laptops and notepads room without crowding microphones or center power modules.

• ADA considerations: Maintain at least one position with knee clearance near 27 inches high, 30 inches wide, and 17 to 25 inches deep. Keep approach routes at 36 inches or more where possible.

• Edge and corners: Eased or radius edges reduce pressure and dings in busy rooms.

Lifting columns and control architecture

A conference table’s mass and span demand synchronized power and precise structure.

• Column count: Use three or four synchronized lifting columns for tables over 84 inches. More legs reduce mid-span deflection. Three-stage columns provide longer stroke and greater overlap at standing height, improving stability.

• Control box: Choose a controller that supports multiple actuators (3–4 legs) with reliable hall-sensor synchronization. Look for soft start/stop ramps, bidirectional anti-collision, and clear error codes.

• Speed and noise: Moderate speeds (about 30 to 40 mm/s) and mid-40s dB(A) at the participant’s ear keep transitions smooth and unobtrusive.

• Safety: Anti-collision matters under and above the surface. Test with foam blocks under edges and padded shelves or displays above to confirm prompt stop-and-reverse behavior.

Subframe, crossbars, and desktop stiffness

• Subframe: A welded or bolted steel underframe ties columns together and spreads loads. Reinforced crossbars (or a ladder frame) curb racking and pitch during lift.

• Feet and stance: Long, gusseted feet increase the restoring moment. For pedestal-style aesthetics, integrate wide base plates tied to the underframe, not just to a single column.

• Desktop: Dense-core laminate at 25 to 30 mm thickness resists panel resonance better than hollow cores. Large inlays for power modules should include local reinforcement plates.

Power and AV integration without cable chaos

A height adjustable conference table moves; AV and power must move safely with it.

• One power drop: Consolidate AC and data through a single floor box per table. Route into an under-table cable trough that houses a surge-protected power strip, small switch, and power bricks. Separate AC from low-voltage in the trough.

• Grommets and modules: Use center modules with AC, USB-C PD, HDMI, and network. Brush-lined openings let device cables pass without snagging during lift.

• Vertical cable chain: A flexible chain or sleeve guides the main trunk to the floor box, forming a smooth S-curve across the full height range. Avoid loose tails that create trip hazards.

• Microphones and cameras: Mount mics on vibration-damped plates and route cables through the trough. For all-in-one bars or cameras, confirm the lift path clears screens and wall fixtures.

Controls and meeting etiquette

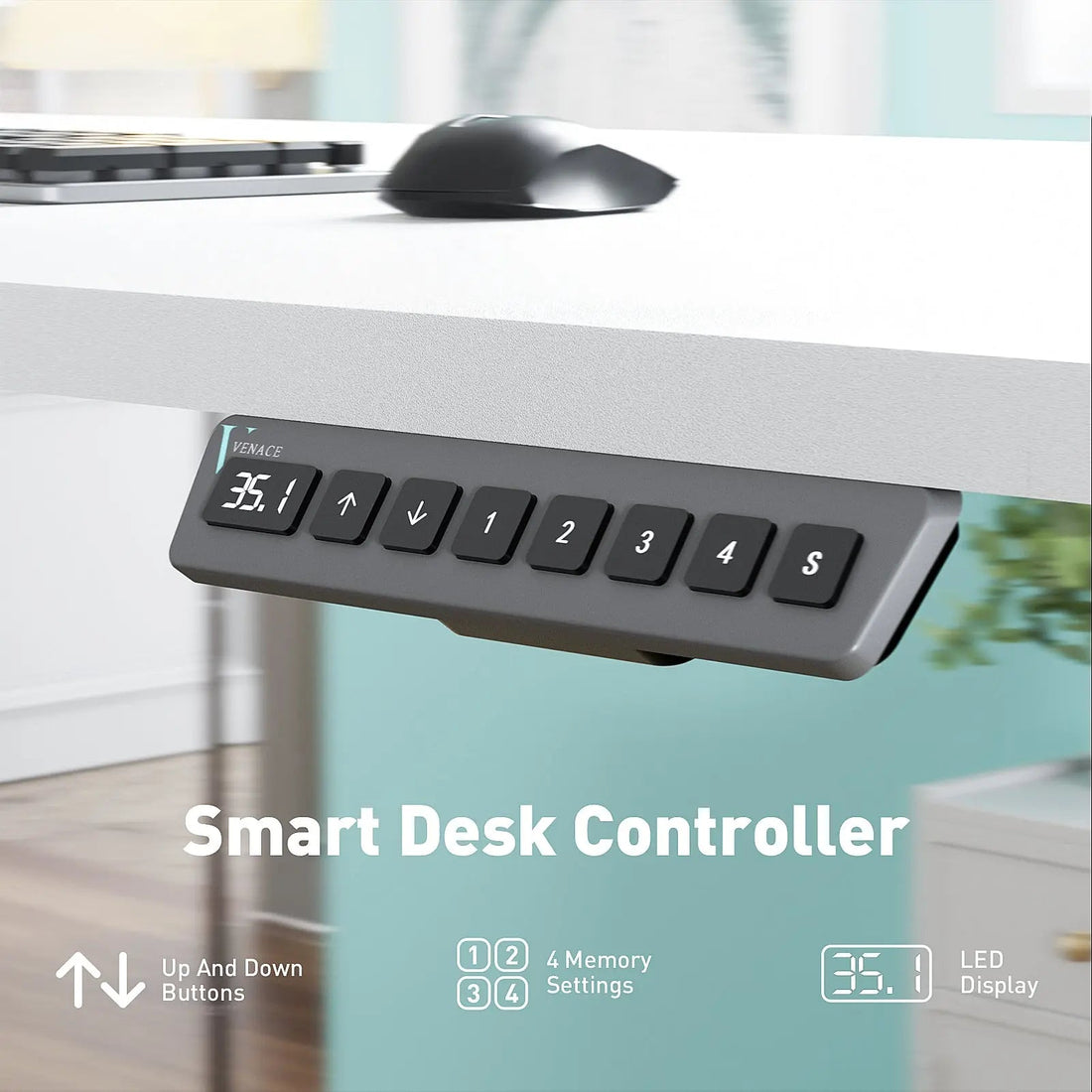

• Controller placement: Mount a desk controller with a bright LED readout at the host position under the edge. Consider a secondary wall switch or a remote if the table edge is crowded.

• Memory presets: Store sitting and standing heights (and a presentation height if you use tall stools). One-touch movement speeds transitions where regulations allow; otherwise, use constant-touch.

• Locks and child safety: In public or multiuse rooms, enable a simple lock on the desk controller to prevent accidental moves.

Acoustics and room fit

• Quiet lifts: Mid-40s dB(A) under typical loads prevents disruption in hybrid meetings. Low, even noise is less distracting than tonal whine—look for refined geartrains and well-fitted lifting columns.

• Room acoustics: Area rugs, ceiling baffles, and soft wall treatments reduce echo so subtle motor sounds do not carry.

Installation and commissioning

• Site survey: Verify floor box location, power circuit, and network ports. Confirm the route for the vertical cable chain and the table’s maximum footprint with chairs.

• Assembly: Square the subframe before torquing; route motor leads along the crossbars into the control box with strain relief; separate AC and data in the trough; secure every power brick.

• Full-travel tests: Run the table from lowest to highest with laptops, hub, and mic bar in place. Listen for rattles, watch the cable chain, and check that the chain maintains an S-curve at both extremes.

• Anti-collision validation: Use foam blocks and a padded shelf test to validate downward and upward stops. Save presets and test with a full room—elbows, bottles, and chairs inevitably get close.

Operational and safety tips

• Move first, then sit: Begin meetings by moving to the planned height. Avoid body parts under the edge during travel.

• Lower before cleaning: Drop the surface to the seated height for wipe-downs to reduce strain and cable snags.

• Label the path: A small card near the host seat outlining presets, lock, and a quick reset procedure reduces “what button is that?” moments.

Procurement checklist

• Three- or four-leg system with dual-motor, three-stage lifting columns and a rigid underframe

• Control box that supports multi-actuator sync, soft start/stop, anti-collision in both directions, and clear error codes

• Dense 25–30 mm laminate or equivalent top with reinforced cutouts for power modules

• Under-table trough with surge-protected power strip, data separation, and secure brick mounts

• Single vertical cable chain to a floor box; brush grommets for device leads

• Desk controller with memory presets, lock function, and optional wall control

• Feet or base plates with wide stance; high-quality rubber pads; levelers that hold

• Documentation: BIFMA-relevant stability tests, CE/RoHS for electronics where applicable, ISTA packaging plan for safe delivery

A height adjustable conference table pays off when it moves quietly, keeps AV tidy, and stays stable at standing height. Choose synchronized lifting columns with a rigid subframe, integrate a clean power trough and a single cable drop, and mount a readable desk controller with presets. Validate anti-collision and noise under real AV load. Do those things, and your meeting room gains the ergonomic benefits of movement without the cable clutter or wobble.
