Hybrid meetings fall apart fast when the presenter hunches, the camera points up their nose, and cables snake across the floor. A height adjustable desk, configured as a presentation station or podium, fixes those problems. With the right frame, camera and light placement, quiet motion, and disciplined cable management, you get clear framing for remote audiences, comfortable posture for speakers, and a station that moves between rooms without snags. Here is how to design a hybrid presentation setup on a standing desk that feels professional and runs reliably day after day.

Start with a stable, quiet base

A podium you can trust starts with structure. Wobble on camera is distracting, and hard end thumps get picked up by mics.

• Frame and legs: Choose a dual-motor height adjustable desk with three-stage lifting columns. Extra stroke length and overlap provide stiffness at full height and accommodate tall speakers while keeping motion smooth.

• Feet and underframe: Long, gusseted feet and a reinforced crossbar curb front-to-back pitch and side-to-side yaw. For oversized tops or displays mounted on the desk, consider a three- or four-leg base tied by a rigid underframe.

• Motion profile and noise: A refined control box with soft start/stop ramps keeps lift noise in the mid-40s dB(A) at ear height. Quiet motion matters in rooms where people and microphones share space.

• Range: Target a worksurface range of roughly 560–620 mm (22–24.5 inches) at the low end and 1,150–1,270 mm (45–50 inches) at the high end. Save seated, perch, and standing presets on the controller for fast transitions between presenters.

Camera, screen, and mic geometry

Remote viewers need eye-level framing, even when the speaker stands tall. Set the optics first, then lock them with presets.

• Camera height and angle: Mount the camera so the lens sits near eye level when the desk is at the presenter’s standing preset. A small ball head on an arm allows fine tilt to keep eyes on the top third of the frame. Avoid extreme “upshots” from laptop lids.

• Display placement: A 24–32 inch confidence monitor on a monitor arm, slightly below camera height, lets speakers see notes and participants without breaking eye line. Clamp the arm close to a lifting column to minimize ripple.

• Lighting: Use a diffused key light just off-axis at 3,500–4,000 K and CRI 90+ to keep skin tones accurate. A bar-style fixture avoids glare and shadows; mount to the desk or a short stand, and route the cord into the tray.

• Microphone strategy: For rooms, a small boundary mic on the surface or a short boom arm with a dynamic mic reduces room noise. Keep cables short and balanced (XLR/TRS) and away from AC bricks.

Cable management that never snags on the move

Hybrid pods roll between rooms or slide in and out of the front row. Treat wiring as part of reliability.

• One power drop: Mount a surge-protected power strip inside a rear metal cable tray. Power the control box, camera, monitor, light, dock, and mic pre from the strip. Run a single trunk through a vertical cable chain to a floor box or power spine. No daisy-chained strips.

• AC vs. low voltage: Inside the tray, keep mains and bricks on one side, and route USB, DisplayPort/HDMI, XLR, and LAN on the other. Cross at 90 degrees if paths must intersect. This reduces hum and keeps displays stable at high refresh.

• Service loops: Leave small slack loops at monitor and camera arm pivots and at the control box so nothing goes taut at full extension or bunches at low height. Tight cables cause false anti-collision stops and flicker on lift.

• Dock placement: Mount the USB-C/Thunderbolt dock under the desktop or inside the tray with a bracket. Use an e‑marked 5A/100 W PD cable for laptops that need it, and keep video runs short and certified (DP 1.4 or HDMI 2.0/2.1).

Fixed vs. mobile presentation stations

Mobility is powerful when you respect physics and floors.

• Fixed podiums: Best for dedicated rooms. Use long feet, level at the standing preset, and run the trunk to a floor box just behind the desk. Test anti-collision against wall fixtures and shelves (foam block down, padded shelf up).

• Mobile carts: Add total-lock casters (lock roll and swivel) and, if needed, a compact UPS strapped in the tray with ventilation space for brief moves. Lower before rolling; lock before lifting. On slick floors, park casters in low-profile floor cups for drift resistance.

Accessibility and visitor flow

Front-of-room stations are public equipment. Make them welcoming and safe.

• Knee clearance: Maintain a clean underside and keep the front 6–8 inches free of hardware. CPU holders and trays mount back toward columns. This supports seated presenters and helps meet ADA expectations.

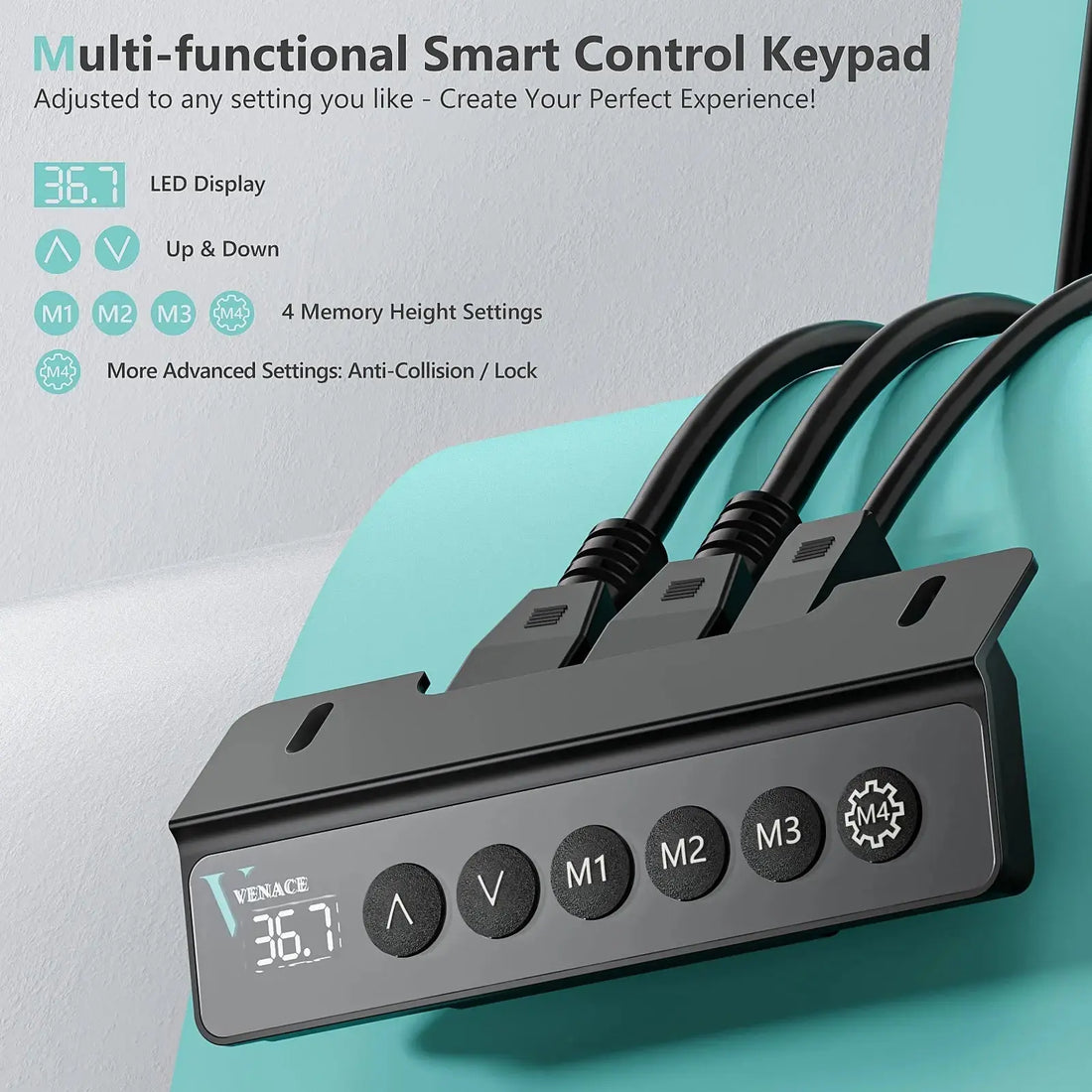

• Controller behavior: Mount the keypad at the front edge on the dominant side, label presets (Sit/Perch/Stand), and enable child lock when unattended. In public spaces, consider hold-to-move per policy.

• Clear routes: Keep 36-inch accessible aisles to and around the station. Stow anti-fatigue mats on a hook when not in use. No cable tails across walkways.

AV signal integrity that survives motion

Hybrid rigs push bandwidth and connectors. Design paths for the format you actually use.

• Video standards: For 4K/60, use certified DP 1.4 or HDMI 2.0 and keep passive runs to 1.5–2 m. For longer paths to in-room displays, use active or optical runs routed inside millwork, not through arm pivots.

• USB devices: Keep webcams and mic interfaces on short USB runs (≤1 m) to a powered hub or dock mounted under the top. Avoid long, passive USB 3.x cables; active extenders exist when needed.

• LAN: For rooms with VoIP or streaming, terminate a CAT drop in the tray and use a short patch to the dock. Label both ends for quick recovery.

Branding and durability

Front-of-house presentation gear carries your brand on camera.

• Finishes: Matte powder-coated frames in brand-aligned colors reduce glare. HPL tops (25–30 mm) wipe clean and resist scratches; add a soft radius at the presenter edge for forearm comfort.

• Logo discipline: A branded keypad faceplate with high-contrast icons reads well on camera. Avoid glossy desktop prints that show fingerprints; if branding the top, encapsulate under laminate.

• Packaging and service: For multi-site programs, require ISTA-tested cartons and a spares plan (one control box, keypad, and lifting column per 50 units). Standardize connectors and underside layout across sites for predictable support.

Commissioning checklist (presentation edition)

• Structure: Dual-motor, three-stage columns; reinforced crossbar; long feet or multi-leg underframe; torque bolts in a star pattern; level at standing preset.

• Cable management: Rear tray installed; surge strip fixed; AC/data lanes separated; bricks strapped; one clean power drop via vertical chain; service loops at camera/monitor pivots and control box.

• AV fit: Camera framed at eye level at the standing preset; key light off-axis and diffused; monitor arm clamped near a leg; short, certified video and USB runs; dock mounted under the top.

• Controls: Keypad mounted at front edge; Sit/Perch/Stand presets saved; child lock set for unattended state; hold-to-move in public where required.

• Safety and noise: Anti-collision tested down (foam block) and up (padded shelf). Lift bottom to top with devices powered; target mid-40s dB(A); strap anything that buzzes.

Troubleshooting quick wins

• Camera shake at full height: Move camera/monitor clamps closer to a lifting column; add a reinforcement plate under thin tops; re-square and re-torque the crossbar; level at the standing preset.

• Flicker on lift: Display or USB cable is tight at a pivot. Add a service loop; replace with a certified, shorter cable; route through a brush grommet.

• Random stops during lift: A cable is rubbing a column or tray; separate AC and low voltage in the tray, move the tray back a notch, and rerun the reset (hold Down to lowest stop).

• Loud end thumps: Retune soft start/stop ramps in the control box; strap bricks; add a thin EVA pad under the surge strip.

A great hybrid presentation station blends good engineering and good AV practice. Start with a stable, quiet height adjustable desk; mount camera, screen, mic, and light where they belong; and route power and signal into a rear tray with one clean drop to the floor. Save presenter presets on the keypad, lock the controller when unattended, and keep service loops at pivots so motion never strains connectors. Do that and your podium will look professional on camera, feel comfortable to use, and roll (or stay put) without surprises.
