If you want your fleet of standing desks to be quiet, stable, and easy to service, the magic is not only in motors and columns. It is under the top. A standardized “golden build” underside layout—where the control box, cable tray, surge strip, vertical cable chain, and labels live—turns every height adjustable desk into a predictable, ergonomic workstation that technicians can assemble, audit, and repair in minutes. Get this pattern right once, then replicate it by picture across sites to slash first‑week tickets and protect ports through years of motion.

Why a golden build matters

• • Reliability through consistency: A repeatable cable management and power layout eliminates the random “flicker on lift,” “won’t move,” and anti‑collision false trips that come from tight or tangled cables.

  • Faster installs: Crews work from photos instead of interpreting drawings, so every standing desk looks and behaves the same—one clean power drop, service loops exactly where motion happens.

  • Easier service: Standard locations for the control box and surge strip, clear labels on both ends of key cables, and a dedicated path for AC vs. data turn 30‑minute mysteries into five‑minute wins.

  • Ergonomic adoption: A readable desk controller placed at the same front‑edge spot on every desk, plus tidy cable management that keeps the knee zone clear, makes daily use natural and truly ergonomic.

The foundation hardware (nonnegotiable)

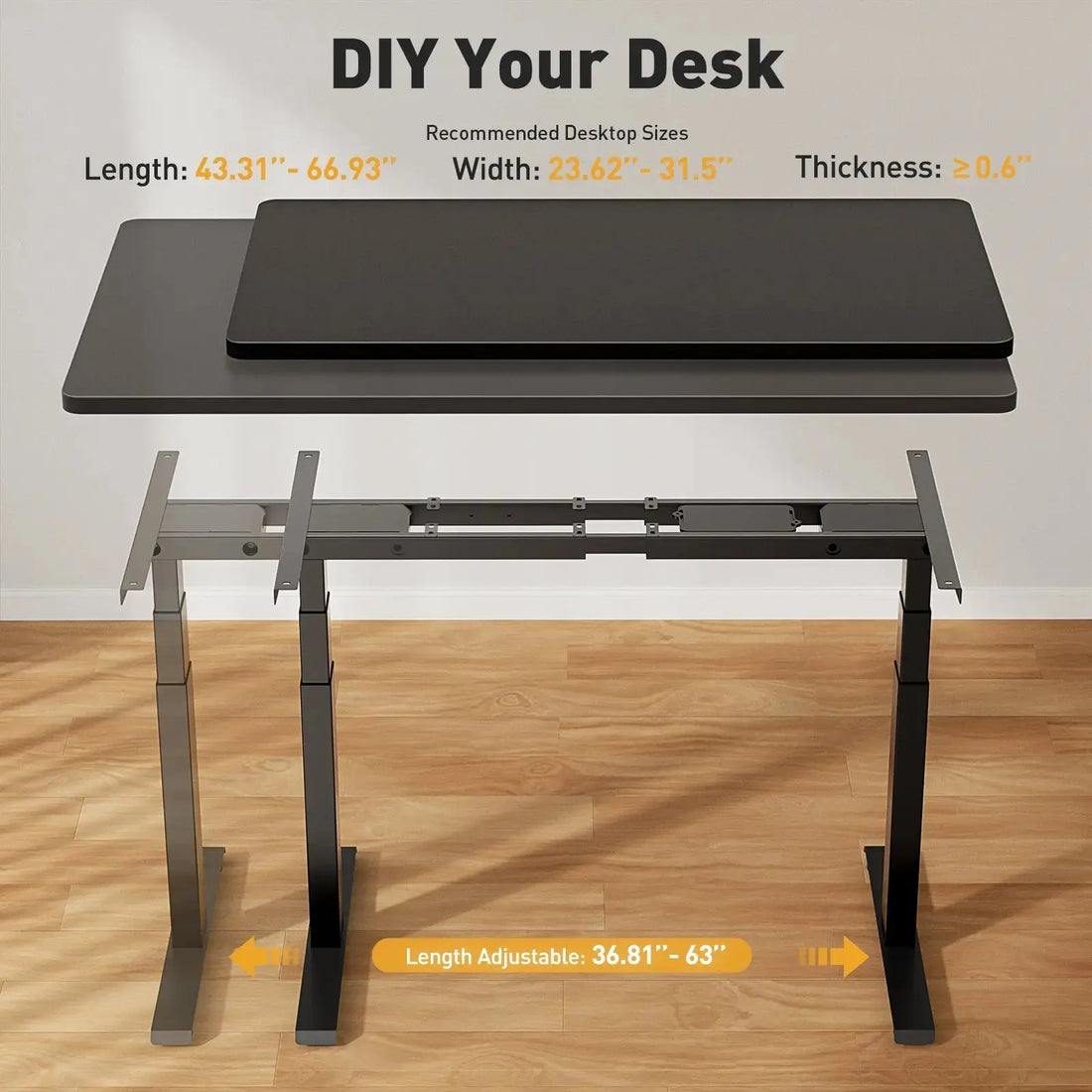

• • Stable frame: Dual motors, three‑stage lifting columns, a reinforced crossbar, and long, gusseted feet. Overlap (stiffness) at standing height is your first defense against wobble.

  • Dense worksurface: A 25–30 mm laminate top resists “panel drum” and clamp dents under monitor arms. Add reinforcement plates under clamp zones on thin tops.

  • Cable management kit: Rear metal cable tray sized to the desk width, a surge‑protected strip mounted inside, and a vertical cable chain that forms a smooth S‑curve from sit to stand.

  • Controls: A control box with soft start/stop ramps and synchronized legs (Hall sensors), paired with a readable desk controller with three or four memory presets.

The golden build layout (where everything goes)

• • Control box placement (rear center‑left or center‑right): Mount the control box on the rear third of the underside, offset a bit from center to shorten motor lead runs. Keep the face with ports pointing inward for easy reseating. Leave 10–15 mm clearance to avoid rubbing crossbars.

  • Rear cable tray (full span if possible): Mount the tray parallel to the back edge, 40–60 mm inboard to clear the frame. The tray becomes home base for AC bricks, the surge‑protected strip, and long cable runs. Choose a basket or solid pan—either works if you strap bricks.

  • Surge strip in tray (switch accessible): Fix the strip to the tray wall or base with screws or metal clips. Orient the on/off switch toward the non‑dominant side (to prevent accidental shutoff). Use spaced outlets and right‑angle plugs for large bricks.

  • AC vs. data segregation (left/right lanes): Inside the tray, designate the left side for mains and bricks, the right side for low‑voltage (DisplayPort/HDMI, USB‑C, LAN). Crossing at 90 degrees beats running parallel.

  • Vertical cable chain (same side as main drop): Land the chain at the tray’s AC side and route one trunk to the floor box or spine. One desk, one drop—no tails across aisles, no daisy‑chained strips.

  • Service loops at motion points: Leave small slack loops at monitor arm pivots, the control box, and where cables enter the tray. Nothing should go taut at full extension or bunch up at low height.

  • Knee zone clean: The front 6–8 inches under the desktop stays clear. CPU holders, shallow drawers, and dock brackets mount just aft of that zone to preserve ergonomics and anti‑collision reliability.

  • Desk controller (front edge, dominant side): Mount the keypad just under the front edge where the dominant hand lands naturally. Label A/B/C/D presets on shared seats.

Fasteners, torque, and protection

• • Use flat washers under all steel‑to‑steel bolts (feet, crossbar) and torque in a star pattern after squaring the frame. Typical ranges: M6 at 7–10 N·m, M8 at 18–25 N·m (follow your frame spec). Even clamp force keeps a height adjustable desk quiet.

  • For wood tops, predrill pilot holes (50–60 percent of screw length), or better, install threaded inserts (M6 or 1/4‑20) to mount the tray and control box. Inserts enable repeatable torque and clean service.

  • Add a thin EVA pad under the surge strip if you ever hear buzz—loose bricks and hard contacts are the No. 1 source of “mystery” noise.

Labeling and documentation (make service obvious)

• • Two‑end labels: Tag “Left DP,” “Right DP,” “Dock PD,” “LAN,” and “Controller” at both ends. Heat‑shrink or durable wrap labels survive wipe‑downs and moves.

  • Port maps: The control box gets a small sticker: M1 left, M2 right, Controller, AC. A matching diagram rides on the quick‑start card.

  • Golden photos: Shoot two underside photos per desk model—left and right—with callouts for tray location, control box, vertical chain, and AC/data lanes. Crews replicate pictures faster than text.

  • Quick‑start card: A small, branded card at the front edge: 1) Save Sit/Stand on the keypad, 2) “Top third of screen at or slightly below eye level,” 3) Reset (hold Down to lowest stop), 4) Child lock/hold‑to‑move where policy requires.

Grommets and device paths

• • Rear corners (60–80 mm brush grommets): Drop display and USB‑C/Thunderbolt lines directly into the tray. Keep at least 70 mm from the back edge and 100 mm from lifting columns; avoid crossbar interference.

  • Center rear for ultrawides: One 80 mm brush grommet feeds a single large display. Keep routing short to protect signal integrity.

  • Power grommets (optional): If you add desktop power, feed from the surge strip in the tray; verify depth clearance and UL listing. Never hang bricks under the front edge.

Golden build QA and commissioning (repeatable checks)

• • Reset and test: After assembly, clear the area, hold Down to the mechanical stop until the keypad beeps or shows RST, then lift and lower once. Run anti‑collision tests: foam block (down), padded shelf (up). Fix cable drag before changing sensitivity.

  • Noise under load: With normal gear installed, lift bottom to top. Target mid‑40s dB(A) at ear height with smooth ramps. End thumps point to loose hardware or tray contact.

  • Corner push at full height: A stable standing desk damps quickly. If you see ripple, re‑torque the crossbar, move arm clamps closer to a leg, add reinforcement plates, and verify long feet match desktop depth.

  • Level at standing height: On carpet or floating floors, adjust levelers only at the standing preset—seated leveling hides slope.

Golden build variants (and why)

• • L‑desk: Two trays (one per span) linked with a short jumper; one vertical chain on the main run; control box on the main span for shorter motor leads.

  • Mobile desk: Total‑lock casters, UPS strapped in the tray with ventilation, chain routed away from wheels. Rule remains: lower before rolling; lock before lifting.

  • Family/public areas: Child lock enabled; hold‑to‑move if policy requires. Controller placement unchanged for adult reach; QR quick‑start under the edge.

Top mistakes (and fixes)

• • Daisy‑chained strips and floor tails: Fix with the tray + one‑drop pattern. House all AC in the tray; route one trunk through the chain.

  • Tight cables at pivots: Add service loops at monitor arm joints and the control box; replace long, under‑spec display cables with certified, shorter DP 1.4/HDMI 2.0/2.1 runs.

  • Random stops on the way down: A cable is rubbing a lifting column or tray. Separate AC/data lanes, move the tray back a notch if needed, and rerun the reset.

  • Controller in the wrong spot: Hidden keypads kill adoption. Remount at the front edge, dominant side. Label presets A/B/C/D on shared seats.

Golden build checklist (paste into your SOP)

• • Control box mounted rear left/right; ports labeled; motor leads dressed with anchors

  • Rear cable tray installed; surge strip fixed inside; AC/data lanes separated; bricks strapped

  • One vertical cable chain to floor power/spine; smooth S‑curve at sit/stand

  • Brush grommets aligned to tray; short runs to arm channels; service loops at pivots and control box

  • Desk controller mounted front edge, dominant side; quick‑start card posted; presets saved

  • Frame squared and torqued (star pattern); level at standing height; anti‑collision down/up tests passed; noise spot‑check mid‑40s dB(A)

A well‑engineered height adjustable desk becomes a great workstation when the underside is standardized. Put the control box in a predictable spot, make the rear tray your AC/data backbone, route one clean power drop through a vertical cable chain, and leave small service loops where motion happens. Pair that golden build with a stable frame—dual motors, three‑stage lifting columns, a reinforced crossbar, long feet—and a readable desk controller with memory presets. Replicate by picture, and your standing desk fleet will stay quiet, ergonomic, and easy to support—every day.
