Tethered capture turns your camera into a live, collaborative tool. Files land instantly on a big screen, clients see progress, and you evaluate focus, exposure and color in real time. The catch: tethering adds cables, power bricks and delicate ports—exactly what a moving surface can stress. A height‑adjustable standing desk solves the ergonomics, but only if you plan routing, lighting and presets with the same care you give your set. This guide shows photographers and video shooters how to build a quiet, cable‑safe tether station that keeps you fast on set and calm in post.

Lock in a safe path from camera to desk

Think in segments: camera → support → strain relief → desk arm/channel → tray hub → computer.

• Camera end: Use a short, high‑quality tether cable (USB‑C/Thunderbolt) with a dedicated strain‑relief clamp at the camera plate or L‑bracket. This prevents accidental wiggles from wearing the port.

• Support handoff: If you shoot on a tripod, run the cable along a leg with soft wraps; on a boom or stand, add a small loop near the head so tilt and pan don’t yank the plug.

• Desk entry: Feed the tether line through your monitor arm’s integrated channel or a small clamp on the desk edge before it drops under the top. This creates a clean “hinge” at the surface.

• Tray hub: Terminate into a tray‑mounted dock or capture device so only a single USB‑C goes up to your laptop. Short device‑to‑dock cables reduce snag risk and keep brick weight off the surface.

Build a one‑cord power plan

A moving workstation needs predictable wiring.

• Under‑desk hub: Mount a surge‑protected power strip and your dock/capture interface in a metal cable tray under the desktop. Pack power bricks here, not on the floor.

• Single wall cable: Route one mains cable down an inside leg raceway to the outlet—no cords across the walk path. If you must cross a path, use a low‑profile, beveled floor cord cover.

• Service loops: Create a gentle U‑shaped slack loop above the tray for every cable that travels with the desk—tether, display power and video, lights, card reader. Each loop must reach full standing height plus an inch or two.

Set visual geometry before color decisions

What you see drives what you shoot.

• Eye line and distance: Keep the top third of your display at or slightly below eye level in Sit and Stand. Maintain an arm’s‑length viewing distance so you evaluate sharpness and micro‑contrast without leaning in.

• Monitor arm and hood: Use an arm to float the screen; add a hood or side shade if your location is bright. The arm lets you fine‑tune height without changing desk height and shoulder angles.

• Bias light: A subtle backlight behind the monitor reduces contrast between the screen and wall, easing eye strain for long evaluation passes.

Lighting that flatters sets and screens

You need practical light for the subject and ergonomic light for the station.

• Desk orientation: Place the tether station perpendicular to windows to reduce glare on glossy screens and tablet covers. Sheer shades tame midday streaks.

• Task light: A high‑CRI, dimmable lamp aimed at notes or a color chart—not the display—helps with logging and metadata without reflections.

• Night shift: Warm ambient light (3000–3500 K) relaxes shoulders during late selects; keep the screen brightness matched to the room to avoid “chasing” detail with a forward head tilt.

Task‑based presets that match a real set

• Capture (stand): General standing height—soft knees, eyes on the live view. Standing keeps you mobile between set and desk and reduces sit‑down delays during client checks.

• Culling (sit): Drop to a comfortable seated height for fast rejects/keepers. Neutral wrists and steady arms improve accuracy on small focus decisions.

• Client review (stand, slightly higher): Raise the surface a touch to open your chest and improve voice when presenting. Mount the camera just above eye level if you run live commentary.

• Grading notes (stand): Keep general standing height for quick passes and scribbles; return to Culling for precision.

Tether‑desk placement in the studio

• Along a wall: Ideal for power and Ethernet; keeps aisle clear. Leave 2–3 inches behind the top so cables never press the wall at full height.

• Near set: If you park close to the subject, angle the desk so the tether line enters the arm channel without crossing a footpath.

• Mobile option: Add locking casters if you reconfigure often. Roll only at minimum desk height and lock all brakes before you raise it.

File flow, backup and network

• Wired uplink: If you hand footage to a server or NAS, run Cat6 in the leg raceway to a tray‑mounted switch or your dock. A stranded patch handles motion without stressing ports.

• On‑desk backup: Keep a small SSD dock in the tray with short leads to the laptop. Label both ends. Daily—copy and verify before you strike the set.

• UPS strategy: A small UPS at the wall can keep your dock/switch alive during flickers. Keep desk motors on the surge strip unless the UPS is sized for inrush current.

Keep the input plane wrist‑neutral

• Keyboard and pointer: Center the home row with your torso; elbows near 90 degrees; wrists straight. If your wrists extend, lower the desk 0.25 inch or add a slight negative tilt.

• Tablet or control surface: For brush masks in tethered apps, put the tablet at a 15–25 degree incline and lower the desk another 0.5 inch so your forearm rests lightly.

• Desk pad and mat: A low‑glare desk pad softens forearm contact and quiets keystrokes; a beveled anti‑fatigue mat keeps feet and lower back fresh during frequent set‑to‑desk walks.

Safety and etiquette on busy sets

• No floor cords: One‑cord wall philosophy prevents trips. If you must cross, cord‑cover it and announce the hazard at call time.

• Anti‑collision: Enable the desk’s anti‑collision feature and test it monthly with a soft block. Lock the keypad whenever talent or kids are on set.

• Liquids and electronics: Keep beverages, plant misters and cleaners off the top when the tray is open. Never water plants above a cable tray.

Troubleshooting common tether issues

• Drops when you raise the desk: The tether loop is too short or catching an edge. Add length, route through arm channels first, and create a bigger U‑shaped loop above the tray.

• Port wiggle at the camera: Add a strain‑relief clamp at the plate; swap a tired cable for a fresh, certified tether line; avoid tight bends near the camera.

• Screen glare in afternoon light: Rotate the desk perpendicular to the strongest window; close sheer shades; turn on task and bias lighting; lower screen brightness to match the room.

• Hums and taps at mid‑rise: A cable is slapping metal. Pad the contact with a felt dot; re‑tie the loop; tighten tray screws. If noise persists, a brick may be vibrating—re‑seat it with Velcro.

A quick tether‑desk checklist

• Surge‑protected strip and dock/capture device mounted in a metal cable tray; short device leads; one mains cable down a leg raceway.

• Tether cable with camera‑side strain relief; routed through arm channels before the tray; generous service loop above the tray.

• Monitor on an arm at eye line; hood or shade as needed; bias light behind panel; desk perpendicular to windows.

• Presets saved: Capture (stand), Culling (sit), Client review (stand, slightly higher), Grading notes (stand).

• Desk pad and anti‑fatigue mat; tablet at 15–25 degrees for brush work; neutral wrists and shoulders.

• Optional Ethernet in leg raceway to a tray switch; labeled SSD dock; small UPS at wall for hub/switch.

A great tether station keeps you focused on the subject, not on the cable. With a standing desk, route the tether through arm channels, land everything in a tray hub and send one cord to the wall. Set eye‑line geometry once, save task‑based presets, and layer in high‑CRI task light with a neutral bias glow. The result is a faster, safer, color‑true capture workflow that resets as easily as you change a lens.

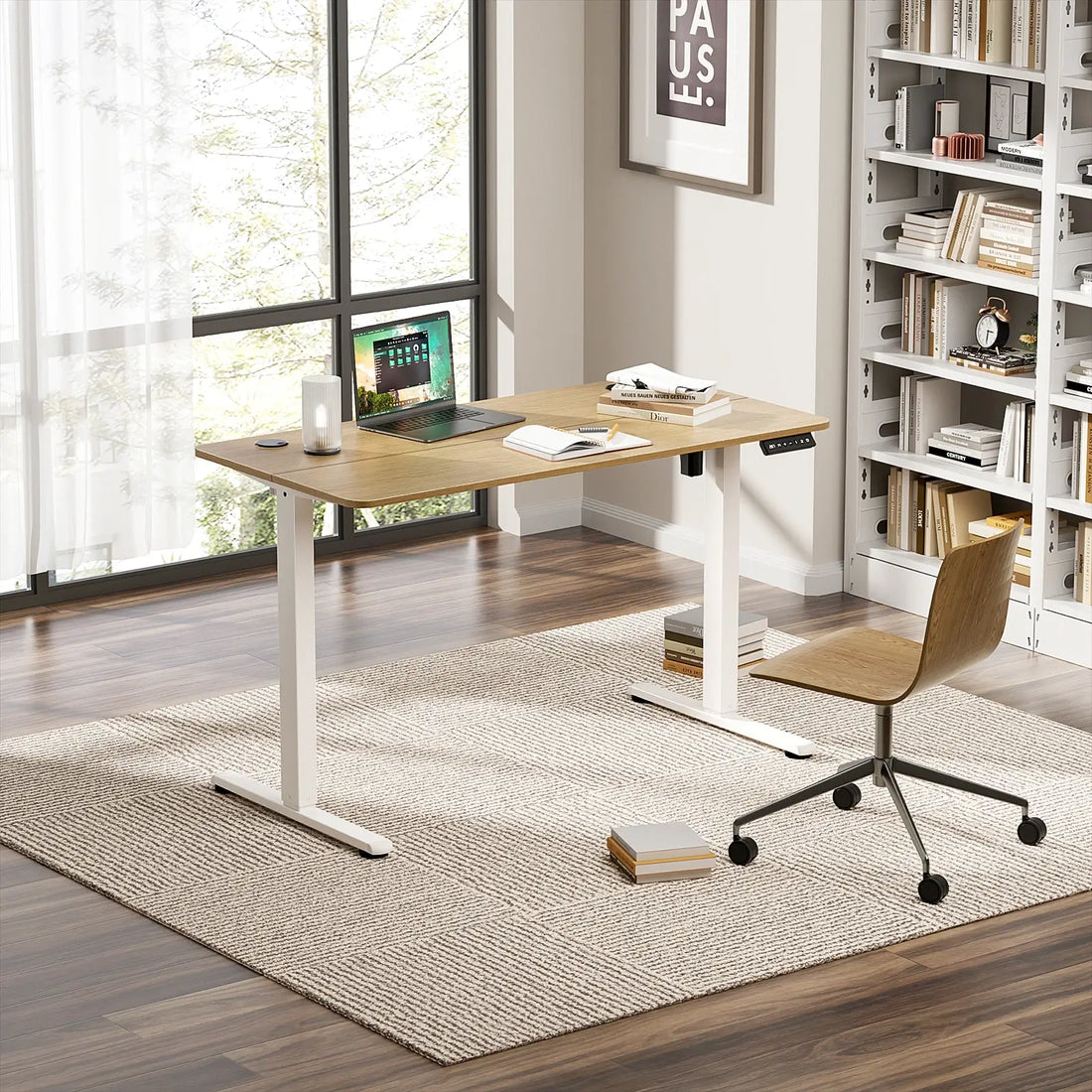

Ready to anchor your tethered workflow on a stable, quiet frame? Explore Vvenace Electric Standing Desk Adjustable Height: https://vvenace.com/products/electric-standing-desk-adjustable-height_?utm_source=copyToPasteBoard&utm_medium=product-links&utm_content=web Shop more at Vvenace: https://vvenace.com/
